NetCDF Climate and Forecast (CF) Metadata Conventions http://cfconventions.org and http://ugrid-conventions.github.io/ugrid-conventions/. More...

#include <mdal_cf.hpp>

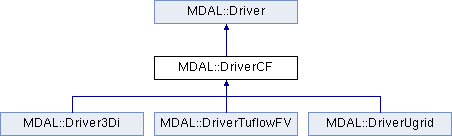

Inheritance diagram for MDAL::DriverCF:

Public Member Functions
	DriverCF (const std::string &name, const std::string &longName, const std::string &filters, const int capabilities)

bool	canReadMesh (const std::string &uri) override

std::unique_ptr< Mesh >	load (const std::string &fileName, const std::string &meshName="") override

Public Member Functions inherited from MDAL::Driver
	Driver (const std::string &name, const std::string &longName, const std::string &filters, int capabilityFlags)

virtual Driver *	create ()=0

std::string	name () const

std::string	longName () const

std::string	filters () const

bool	hasCapability (Capability capability) const

bool	hasWriteDatasetCapability (MDAL_DataLocation location) const

virtual std::string	writeDatasetOnFileSuffix () const

virtual std::string	saveMeshOnFileSuffix () const

virtual bool	canReadDatasets (const std::string &uri)

virtual int	faceVerticesMaximumCount () const
	returns the maximum vertices per face

virtual std::string	buildUri (const std::string &meshFile)

virtual void	load (const std::string &uri, Mesh *mesh)

virtual void	save (const std::string &fileName, const std::string &meshName, Mesh *mesh)

virtual void	createDatasetGroup (Mesh *mesh, const std::string &groupName, MDAL_DataLocation dataLocation, bool hasScalarData, const std::string &datasetGroupFile)

virtual void	createDataset (DatasetGroup group, RelativeTimestamp time, const double values, const int *active)

virtual void	createDataset (DatasetGroup group, RelativeTimestamp time, const double values, const int verticalLevelCount, const double verticalExtrusion)

virtual bool	persist (DatasetGroup *group)

Protected Member Functions
virtual CFDimensions	populateDimensions ()=0

virtual void	populateElements (Vertices &vertices, Edges &edges, Faces &faces)=0

virtual void	addBedElevation (MDAL::MemoryMesh *mesh)=0

virtual std::string	getCoordinateSystemVariableName ()=0

virtual std::set< std::string >	ignoreNetCDFVariables ()=0

virtual void	parseNetCDFVariableMetadata (int varid, std::string &variableName, std::string &name, bool is_vector, bool isPolar, bool invertedDirection, bool is_x)=0

virtual std::vector< std::pair< double, double > >	parseClassification (int varid) const =0

virtual std::string	getTimeVariableName () const =0

virtual std::shared_ptr< MDAL::Dataset >	create2DDataset (std::shared_ptr< MDAL::DatasetGroup > group, size_t ts, const MDAL::CFDatasetGroupInfo &dsi, double fill_val_x, double fill_val_y)

virtual std::shared_ptr< MDAL::Dataset >	create3DDataset (std::shared_ptr< MDAL::DatasetGroup > group, size_t ts, const MDAL::CFDatasetGroupInfo &dsi, double fill_val_x, double fill_val_y)

virtual DateTime	defaultReferenceTime () const
	Returns the default reference time.

void	setProjection (MDAL::Mesh *m)

cfdataset_info_map	parseDatasetGroupInfo ()

DateTime	parseTime (std::vector< RelativeTimestamp > &times)
	Populates the times array and returns the reference time.

void	addDatasetGroups (Mesh *mesh, const std::vector< RelativeTimestamp > &times, const cfdataset_info_map &dsinfo_map, const DateTime &referenceTime)

Protected Attributes
std::string	mFileName

std::string	mRequestedMeshName

std::shared_ptr< NetCDFFile >	mNcFile

CFDimensions	mDimensions

Detailed Description

NetCDF Climate and Forecast (CF) Metadata Conventions http://cfconventions.org and http://ugrid-conventions.github.io/ugrid-conventions/.

The documentation for this class was generated from the following files:

mdal_cf.hpp
mdal_cf.cpp
